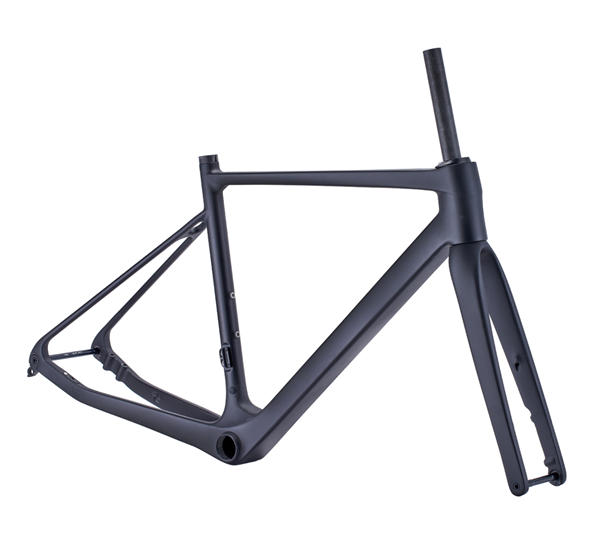

ANLACE ONE

Specifications

Feature Carbon entry road frameset, flat mount disc brake. Tire: 700c*30mm. Include fork. Fork crown: 45° lower presser.
Headtube 1.5" (FSA NO55R)
Seatpost 27.2mm
Size XS/S/M/L/XL
Weight (frame) 990g +/- 30g (Size: M)
BB Type BB86
Seattube 31.8mm

Geometry

Size S SC O HS HC F OT WB FC RC G Reach Stack
XS 430 75° 495 105 71° 369 45 959.4 561.5 408 69 360.1 503.5
S 474 74.5° 515 120 72° 369 45 966.9 568.9 408 69 370.9 521.1
M 530 73.5° 545 151 73∘ 369 45 978.5 580.2 408 69 380.7 554.1
L 550 73.5° 565 170 73° 369 45 998.6 600.4 408 69 394.1 557
XL 580 73.2° 585 200 73° 369 45 1018.8 620.5 408 69 407 600.9
